如何使用明道配置企微消息服务接收消息

集成 系统集成企业微信私有部署  收藏
2 / 1293

* 注意事项:

* 配置步骤:

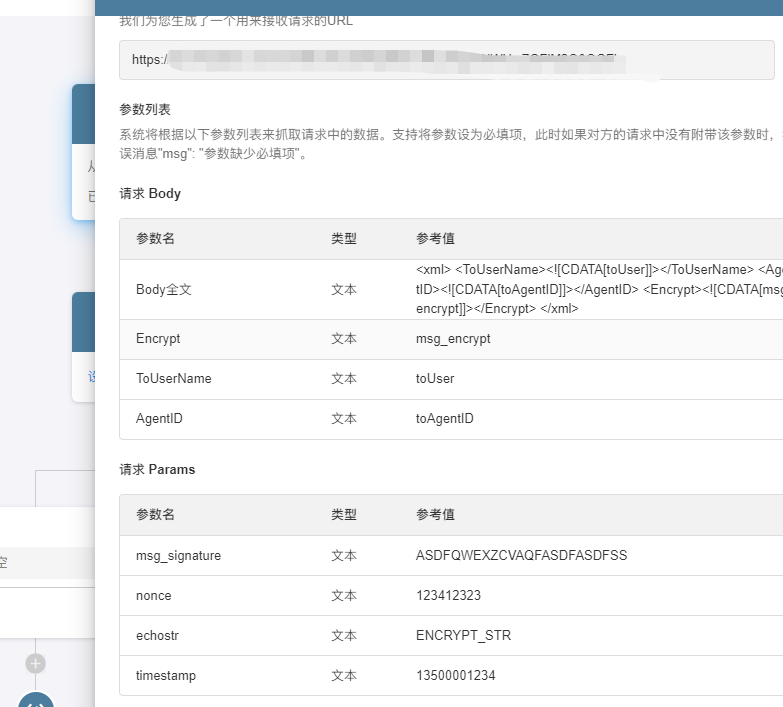

1.配置 webhook,参数【body 获取全文】 拿到对应的参数值,/PBP(封装业务流)请开启 API

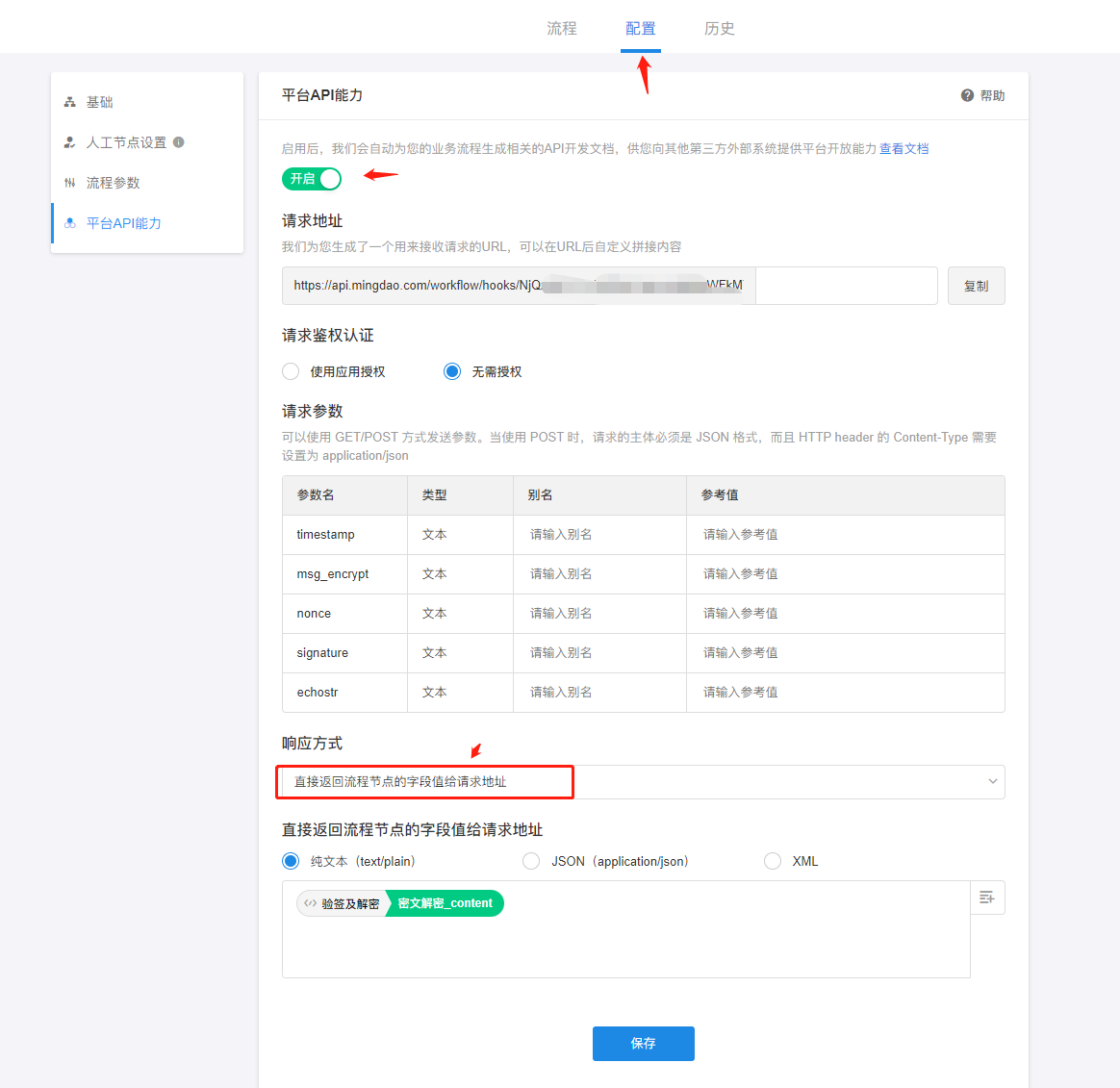

  • 1.1 webhook 参数配置

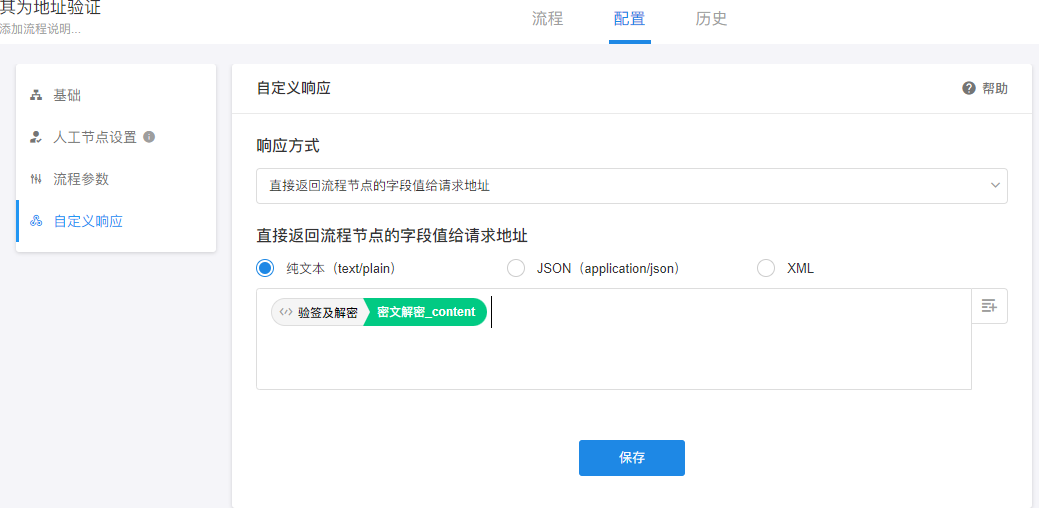

  • 1.2 PBP 参数配置
  1. 流程配置:

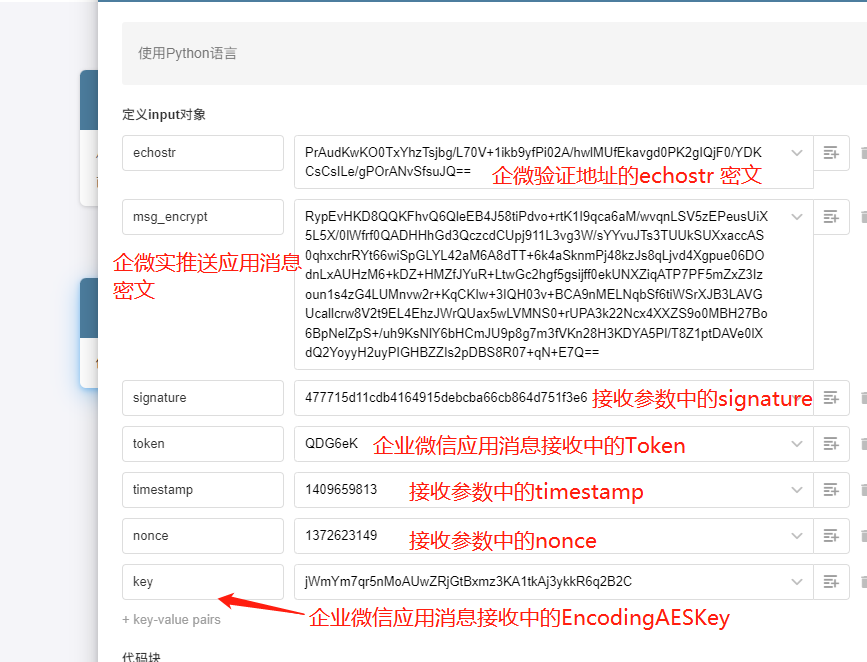

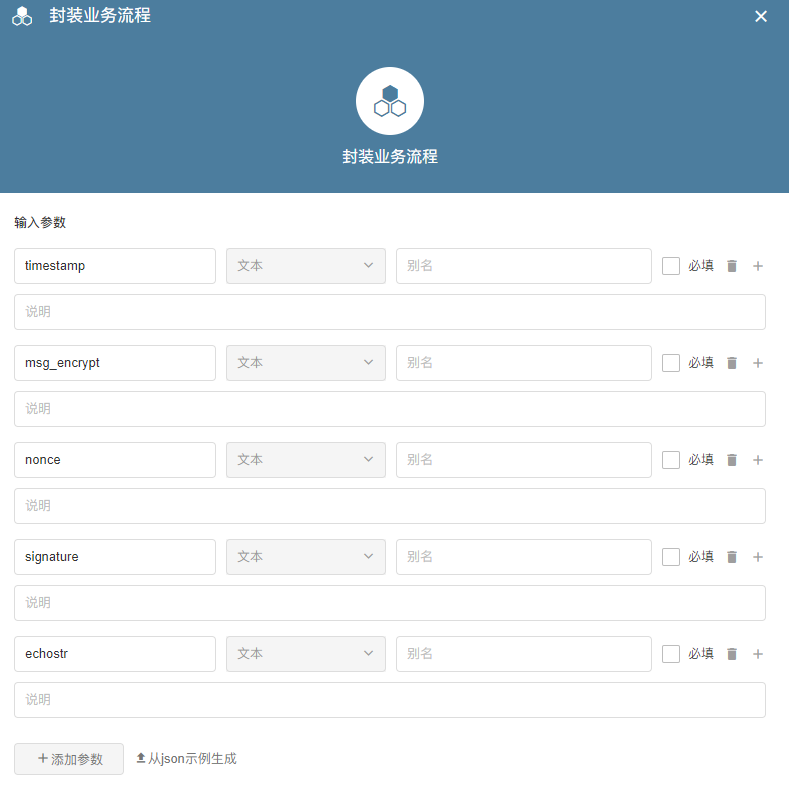

  • 入参配置以及参数释义:


  • 地址验证解析以及密文解析:
    在代码逻辑中:
    1.添加签名校验 防止信息篡改
    2.添加地址验证 还是应用消息信息判断,按实际解密后进行数据转换,消息也提业务

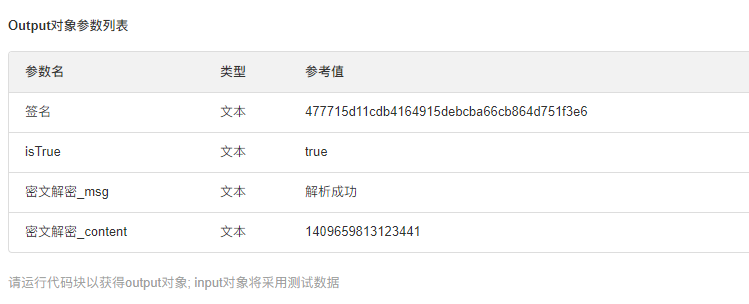

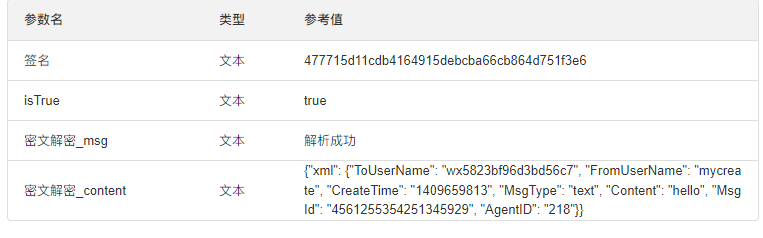

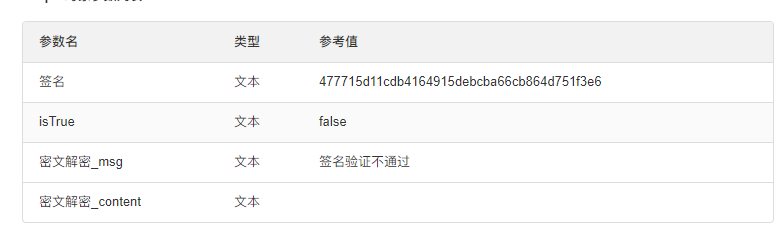

    (依据:验证地址发送 echostr ,不发送 msg_encrypt;地址证通过后才发 msg_encrypt 的 对应的 echostr 不发送。 )效果如下


  • 配置输出参数
    webhook
    PBP

整个流程到此配置结束。

python 解密整合

import base64
import string
import random
import hashlib
import time
import struct
from Crypto.Cipher import AES
import socket
import xmltodict
import json

key = base64.b64decode(input["key"]+"=")
mode = AES.MODE_CBC
block_size = 32

def getSHA1(token, timestamp, nonce, msg):
    sortlist = [token, timestamp, nonce, msg]
    sortlist.sort()
    sha = hashlib.sha1()
    sha.update("".join(sortlist).encode())
    return sha.hexdigest()
def PKCS7Encoder_encode(text):
    text_length = len(text)
    # 计算需要填充的位数
    amount_to_pad = block_size - (text_length % block_size)
    if amount_to_pad == 0:
        amount_to_pad = block_size
    # 获得补位所用的字符
    pad = chr(amount_to_pad)
    return text + (pad * amount_to_pad).encode()

def PKCS7Encoder_decode(decrypted):
    pad = decrypted[-1]
    if pad<1 or pad >32:
        pad = 0
    return decrypted[:-pad]

def encrypt(text,receiveid):
    # 16位随机字符串添加到明文开头
    text = text.encode()
    text = get_random_str() + struct.pack("I", socket.htonl(len(text))) + text + receiveid.encode()
    # 使用自定义的填充方式对明文进行补位填充
    text = PKCS7Encoder_encode(text)
    # 加密
    cryptor = AES.new(key,mode,key[:16])
    try:
        ciphertext = cryptor.encrypt(text)
        # 使用BASE64对加密后的字符串进行编码
        return base64.b64encode(ciphertext)
    except Exception as e:
        return  str(e)

def decrypt(text):
    try:
        cryptor = AES.new(key,mode,key[:16])
        # 使用BASE64对密文进行解码,然后AES-CBC解密
        plain_text = cryptor.decrypt(base64.b64decode(text))
    except Exception as e:
        return {"msg": "BASE64对密文进行解码:"+str(e,) ,"content":""}
    #try:
    pad =plain_text[-1]
    # 去除16位随机字符串
    content = plain_text[16:-pad]
    xml_len = socket.ntohl(struct.unpack("I",content[ : 4])[0])
    xml_content = content[4 : xml_len+4]
    from_receiveid = content[xml_len+4:]
    return {"msg":'解析成功',"content":str(xml_content,'utf-8')}
    #json.dumps(xmltodict.parse())

def get_random_str():
    return str(random.randint(1000000000000000, 9999999999999999)).encode()

nsignature=getSHA1(input["token"],input["timestamp"],input["nonce"],input["msg_encrypt"])
content=input['echostr']
ismessage=False
if(len(content)==0):
  ismessage=True
  content=input['msg_encrypt']
result=decrypt(content)
if ismessage:
  result['content']=json.dumps(xmltodict.parse(result['content'],'utf-8'))
output={"签名":nsignature,"isTrue":nsignature==input['signature'],
"密文解密":result
}

nodejs 解密:

///企微消息解密
const crypto = require('crypto')
const EncodingAESKey = input.EncodingAESKey;
const aesMsg = input.echostr

function _decode(data, aesKeyEncoding) {
let aesKey = Buffer.from(aesKeyEncoding + '=', 'base64');
let aesCipher = crypto.createDecipheriv("aes-256-cbc", aesKey, aesKey.slice(0, 16));
aesCipher.setAutoPadding(false);
let decipheredBuff = Buffer.concat([aesCipher.update(data, 'base64'), aesCipher.final()]);
decipheredBuff = PKCS7Decoder(decipheredBuff);
let len_netOrder_corpid = decipheredBuff.slice(16);
let msg_len = len_netOrder_corpid.slice(0, 4).readUInt32BE(0);
const result = len_netOrder_corpid.slice(4, msg_len + 4).toString();
return result; // 返回一个解密后的明文-
}
function PKCS7Decoder (buff) {
var pad = buff[buff.length - 1];
if (pad < 1 || pad > 32) {
 pad = 0;
}
return buff.slice(0, buff.length - pad);
}

return { decryptMsg: _decode(aesMsg, EncodingAESKey) }

//// xml转json

const Xml2js = require('xml2js');
var xml={};
const Parser = new Xml2js.Parser({explicitArray: false, ignoreAttrs: false});
Parser.parseString(input.xml, function (err, data) {
   if (err) console.log(err);
   xml=data
});
output=xml
